MULTI SWITCH

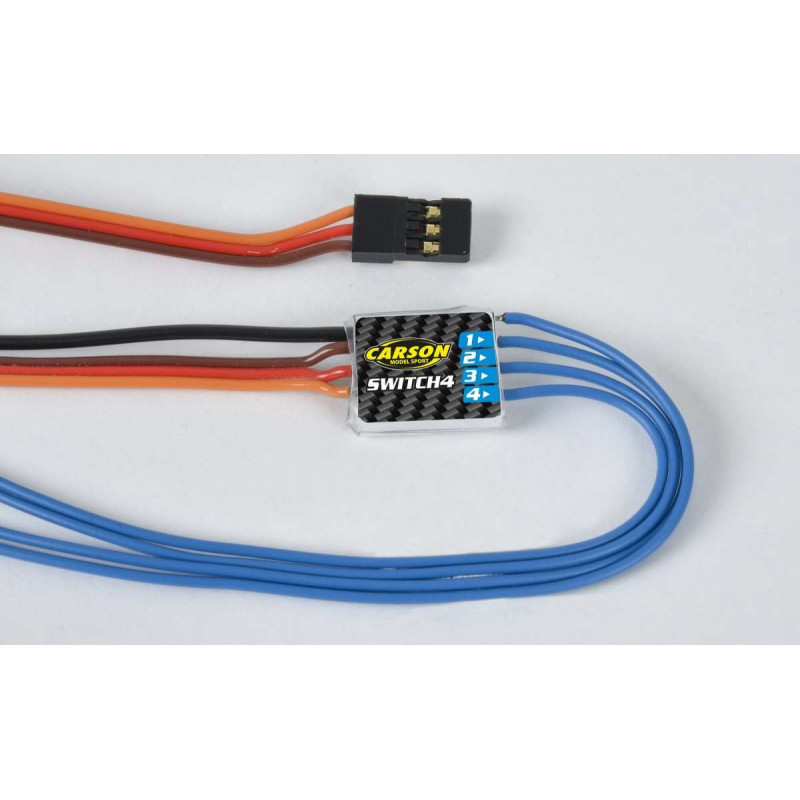

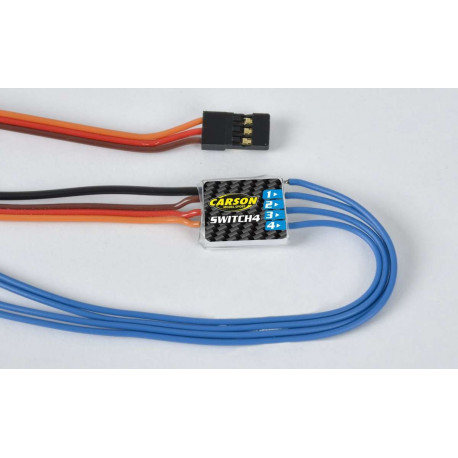

CARSON 4 Channel Switch 4x2,5A.

The switching modules are connected directly to an RC receiver and can be controlled via a push button, switch or joystick. The position of the switch (top and bottom) and the duration (short and long) are evaluated. The 2 module only evaluates the position. It must be ensured that these have a center position for pushbuttons and switches.
Each switching output has a memory function, ie a switching output remains activated until the switch has been brought back into the neutral position again and brought into the same position again.
On the switching modules 4 outputs and outputs are available separately. The outputs each have an 20 cm long blue cable.
This cable is to be connected to the negative pole of the load. Each switching output can have a current of max. Switch 2,5 A on. The maximum permissible supply voltage is 16 V.
The switching module supplies itself via the voltage of the servo cable. The black mini-cable can be connected directly to the battery or to the distribution terminal. The black cable must be connected at high loads in order to avoid damage to the receiver.

Technical specifications
Input voltage: 4 - 8 V from the receiver
Input current: approx. 18 mA with 5 V
Outputs: 4 pieces
Switching voltage: Maximum 16 V
Switching current: Maximum 2,5 A per output
Connection cable: Outputs: 4 blue silicone cable with 200 mm length and 0,25 qmm
Servo connection: 300 mm Servocable with UNI connector
Min. Cable: Silicone cable with 200 mm length and 0,5 qmm
Dimensions: 16 14 x x 4 mm
Weight: 10 g
