REGOLATORE QUICRUN 1060 HOBBYWING

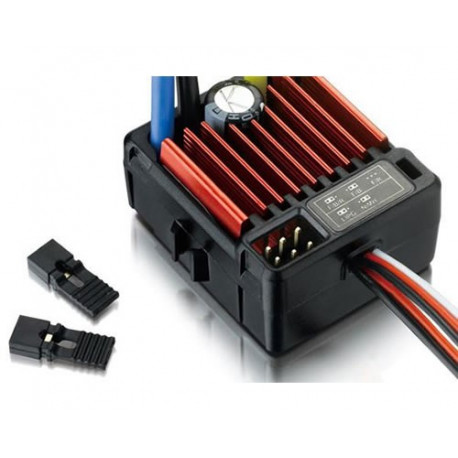

Hobbywing - QuicRun WP-1060-Brushed Regolatore per motori a spazzole 60/360 A Waterproof 2-3S LiPo.

This speedo is suitable for all-weather condition races because of its water-proof and dust-proof design. It owns these outstanding features as listed below. Small size with built-in capacitor module. Three running modes fits for various vehicles: Fwd/Rev/Br, Fwd/Br and Fwd/Rev (Fwd =Forward, Br=Brake, Rev=Reverse). Great current endurance capability. Great built-in BEC output capacity. Automatic throttle range calibration, easy to use. Easy to set the ESC parameters with jumpers. Multiple protections like Low voltage cut-off protection, Over-heat protection and Throttle signal loss protection to extend the service life.

- Fwd. Cont. / Peak Current: 60A /360A
- Rev. Cont. / Peak Current: 30A /180A
- Resistance: Fwd 0.001 Ohm, Rev 0.002 Ohm
- Input: 2-3S LiPo or 5-9 NiMh
- BEC Output: 2A/5V (Linear Mode)
- Motor Limit:
- 2S Lipo or 6 NiMh
- 540 or 550 Size Motor: 12T or RPM 30000 at 7.2V
- 3S Lipo or 9 NiMh
- 540 or 550 Size Motor: 18T or RPM 20000 at 7.2V
- PWM Frequency: 1KHz
- Cooling Fan: Without cooling fan
- Weight: 39g
- Size: 36.5(L)x32(W)x18(H)mm
- Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
- Car Applicable: 1/10 Touring Car, Buggy, Short Course, Truck, Monster, Truggy, Rock Crawler and Tank
